PAC1000S56-CB Huawei 1000W AC 240V DC Power Module For S5731/S5732/S5735 Switches

Name: PAC1000S56CB Huawei 1000W AC 240V DC Power Module For S5731S5732S5735 Switches
Brand: Huawei
Price: 1 USD

Quality PAC1000S56-CB Huawei 1000W AC 240V DC Power Module For S5731/S5732/S5735 Switches for sale

Brand Name : Huawei

Model Number : PAC1000S56-CB

Certification : CE

Place of Origin : China

MOQ : 1

Payment Terms : L/C, T/T, L/C, T/T

Name : PAC1000S56-CB

Model : PAC1000S56-CB

Detail : PAC1000S56-CB

weight : 6kg

Warranty : 1 years

Availability : Stock

Condition : New Factory Sealed

Interface Type : 24pin

Rating Power : 901W - 1000W

Contact Now

PDC1000S56-CB

PAC1000S56-CB is the Huawei 1000W AC&240V DC power module for S5731/S5732/S5735 Switches.

Quick Spec

Table 1 shows the quick spec.

Model	PAC1000S56-CB
Supported Platforms	Huawei S5731/S5732/S5735/S5736 Switches
Number of inputs	1
Rated output voltage [V]	56 V
Rated output power [W]	100 V AC to 130 V AC input: •Total: 900 W 200 V AC to 240 V AC input and 240 V DC input: •Total: 1000 W
Power dissipation Mode	Heat dissipation with fan
Hot swapping	Supported

Product Details

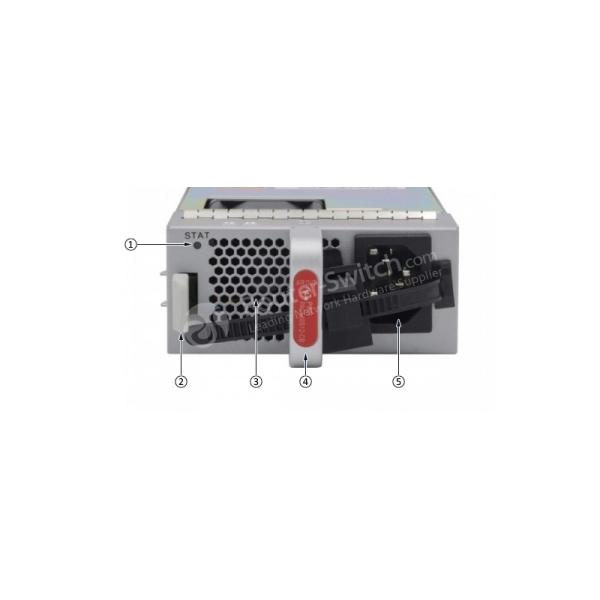

Figure 1 shows the appearance of PAC1000S56-CB.

PAC1000S56-CB Huawei 1000W AC 240V DC Power Module For S5731/S5732/S5735 Switches

Note:

①	Lock	④	Handle
②	Indicator	⑤	AC power socket
③	Fan air vent

PAC1000S56-CB Specification

PAC1000S56-CB Specification
Dimensions without packaging (H x W x D) [mm(in.)]	40 mm x 90 mm x 215 mm (1.6 in. x 3.5 in. x 8.5 in.)
Number of inputs	1
Rated input voltage [V]	100 V AC to 130 V AC, 50/60 Hz 200 V AC to 240 V AC, 50/60 Hz 240 V DC
Input voltage range [V]	90 V AC to 290 V AC, 45 Hz to 65 Hz 190 V DC to 290 V DC
Maximum input current [A]	100 V AC to 130 V AC: 12 A 200 V AC to 240 V AC: 8 A 240 V DC: 8 A
Rated output voltage [V]	56 V
Rated output current [A]	100 V AC to 130 V AC input: 16.08 A 200 V AC to 240 V AC input and 240 V DC input: 17.86 A
Rated output power [W]	100 V AC to 130 V AC input: •Total: 900 W 200 V AC to 240 V AC input and 240 V DC input: •Total: 1000 W
Power dissipation Mode	Heat dissipation with fan
Hot swapping	Supported

Quick Spec

Table 1 shows the quick spec.

Model	PAC1000S56-CB
Supported Platforms	Huawei S5731/S5732/S5735/S5736 Switches
Number of inputs	1
Rated output voltage [V]	56 V
Rated output power [W]	100 V AC to 130 V AC input: •Total: 900 W 200 V AC to 240 V AC input and 240 V DC input: •Total: 1000 W
Power dissipation Mode	Heat dissipation with fan
Hot swapping	Supported

Product Details

Figure 1 shows the appearance of PAC1000S56-CB.

PAC1000S56-CB Huawei 1000W AC 240V DC Power Module For S5731/S5732/S5735 Switches

Note:

①	Lock	④	Handle
②	Indicator	⑤	AC power socket
③	Fan air vent

Supported Platforms

Table 2 shows the supported switches.

Product	Description
S5731-S24P4X	S5731-S24P4X (2410/100/1000BASE-T ports,410GE SFP+ ports, PoE+, without power module)
S5731-S24P4X	S5731-S24P4X (2410/100/1000BASE-T ports,410GE SFP+ ports, PoE+, without power module)
S5731-S48P4X	S5731-S48P4X (4810/100/1000BASE-T ports,410GE SFP+ ports, PoE+, without power module)
S5731-S48P4X	S5731-S48P4X (4810/100/1000BASE-T ports,410GE SFP+ ports, PoE+, without power module)
S5731S-S24P4X-A	Huawei S5731S-S switch, 24 x 10/100/1000Base-T Ethernet ports, 4 x 10 Gig SFP+, PoE+
S5731S-S24P4X-A	Huawei S5731S-S switch, 24 x 10/100/1000Base-T Ethernet ports, 4 x 10 Gig SFP+, PoE+
S5731S-S48P4X-A	Huawei S5731S-S switch, 48 x 10/100/1000Base-T Ethernet ports, 4 x 10 Gig SFP+, PoE+
S5731S-S48P4X-A	Huawei S5731S-S switch, 48 x 10/100/1000Base-T Ethernet ports, 4 x 10 Gig SFP+, PoE+
S5731-H24P4XC	S5731-H24P4XC (2410/100/1000BASE-T ports, 410GE SFP+ ports, 1*expansion slot, PoE+, without power module)
S5731-H24P4XC	S5731-H24P4XC (2410/100/1000BASE-T ports, 410GE SFP+ ports, 1*expansion slot, PoE+, without power module)
S5731-H48P4XC	S5731-H48P4XC (4810/100/1000BASE-T ports, 410GE SFP+ ports, 1*expansion slot, PoE+, without power module)
S5731-H48P4XC	S5731-H48P4XC (4810/100/1000BASE-T ports, 410GE SFP+ ports, 1*expansion slot, PoE+, without power module)
S5732-H24UM2CC	S5732-H24UM2CC 2.5&10G Bundle (12100M/1G/2.5G, 12100M/1G/2.5G/5G/10G Ethernet ports, Optional RTU upgrade to 5/10G, 425GE + 240GE or 2100GE, 1expansion slot, PoE++, 1*1000W AC power)
S5732-H48UM2CC	S5732-H48UM2CC 2.5&10G Bundle (36100M/1G/2.5G, 12100M/1G/2.5G/5G/10G Ethernet ports, Optional RTU upgrade to 5/10G, 425GE + 240GE or 2100GE, 1expansion slot, PoE++, 1*1000W AC power)
S5735-L48P4X-A	S5735-L48P4X-A bundle (4810/100/1000BASE-T ports, 410GE SFP+ ports, PoE+, 1*1000W PoE AC power module)
S5735S-L48P4S-A	Huawei S5735-L switch, 48 x 10/100/1000Base-T ports, 4 x GE SFP ports, PoE+, Distribution model
S5735S-L48P4X-A	Huawei S5735-L switch, 48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports, PoE+, Distribution model
S5735-S24P4X	S5735-S24P4X (2410/100/1000BASE-T ports, 410GE SFP+ ports, PoE+, without power module)
S5735-S48P4X	S5735-S48P4X (4810/100/1000BASE-T ports, 410GE SFP+ ports, PoE+, without power module)
S5735S-S24P4X-A	Huawei S5735-S switch, 24 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports, PoE+, AC power supply

Get More Information

Do you have any question about the PAC1000S56-CB?

Quick Spec

Table 1 shows the quick spec.

Model	PAC1000S56-CB
Supported Platforms	Huawei S5731/S5732/S5735/S5736 Switches
Number of inputs	1
Rated output voltage [V]	56 V
Rated output power [W]	100 V AC to 130 V AC input: •Total: 900 W 200 V AC to 240 V AC input and 240 V DC input: •Total: 1000 W
Power dissipation Mode	Heat dissipation with fan
Hot swapping	Supported

Product Details

Figure 1 shows the appearance of PAC1000S56-CB.

PAC1000S56-CB Huawei 1000W AC 240V DC Power Module For S5731/S5732/S5735 Switches

Note:

①	Lock	④	Handle
②	Indicator	⑤	AC power socket
③	Fan air vent

Supported Platforms

Table 2 shows the supported switches.

Product	Description
S5731-S24P4X	S5731-S24P4X (2410/100/1000BASE-T ports,410GE SFP+ ports, PoE+, without power module)
S5731-S24P4X	S5731-S24P4X (2410/100/1000BASE-T ports,410GE SFP+ ports, PoE+, without power module)
S5731-S48P4X	S5731-S48P4X (4810/100/1000BASE-T ports,410GE SFP+ ports, PoE+, without power module)
S5731-S48P4X	S5731-S48P4X (4810/100/1000BASE-T ports,410GE SFP+ ports, PoE+, without power module)
S5731S-S24P4X-A	Huawei S5731S-S switch, 24 x 10/100/1000Base-T Ethernet ports, 4 x 10 Gig SFP+, PoE+
S5731S-S24P4X-A	Huawei S5731S-S switch, 24 x 10/100/1000Base-T Ethernet ports, 4 x 10 Gig SFP+, PoE+
S5731S-S48P4X-A	Huawei S5731S-S switch, 48 x 10/100/1000Base-T Ethernet ports, 4 x 10 Gig SFP+, PoE+
S5731S-S48P4X-A	Huawei S5731S-S switch, 48 x 10/100/1000Base-T Ethernet ports, 4 x 10 Gig SFP+, PoE+
S5731-H24P4XC	S5731-H24P4XC (2410/100/1000BASE-T ports, 410GE SFP+ ports, 1*expansion slot, PoE+, without power module)
S5731-H24P4XC	S5731-H24P4XC (2410/100/1000BASE-T ports, 410GE SFP+ ports, 1*expansion slot, PoE+, without power module)
S5731-H48P4XC	S5731-H48P4XC (4810/100/1000BASE-T ports, 410GE SFP+ ports, 1*expansion slot, PoE+, without power module)
S5731-H48P4XC	S5731-H48P4XC (4810/100/1000BASE-T ports, 410GE SFP+ ports, 1*expansion slot, PoE+, without power module)
S5732-H24UM2CC	S5732-H24UM2CC 2.5&10G Bundle (12100M/1G/2.5G, 12100M/1G/2.5G/5G/10G Ethernet ports, Optional RTU upgrade to 5/10G, 425GE + 240GE or 2100GE, 1expansion slot, PoE++, 1*1000W AC power)
S5732-H48UM2CC	S5732-H48UM2CC 2.5&10G Bundle (36100M/1G/2.5G, 12100M/1G/2.5G/5G/10G Ethernet ports, Optional RTU upgrade to 5/10G, 425GE + 240GE or 2100GE, 1expansion slot, PoE++, 1*1000W AC power)
S5735-L48P4X-A	S5735-L48P4X-A bundle (4810/100/1000BASE-T ports, 410GE SFP+ ports, PoE+, 1*1000W PoE AC power module)
S5735S-L48P4S-A	Huawei S5735-L switch, 48 x 10/100/1000Base-T ports, 4 x GE SFP ports, PoE+, Distribution model
S5735S-L48P4X-A	Huawei S5735-L switch, 48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports, PoE+, Distribution model
S5735-S24P4X	S5735-S24P4X (2410/100/1000BASE-T ports, 410GE SFP+ ports, PoE+, without power module)
S5735-S48P4X	S5735-S48P4X (4810/100/1000BASE-T ports, 410GE SFP+ ports, PoE+, without power module)
S5735S-S24P4X-A	Huawei S5735-S switch, 24 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports, PoE+, AC power supply

Get More Information

Do you have any question about the PAC1000S56-CB?
