Product Overview
The 800G OSFP VR8 MPO Optical Transceiver is a cutting-edge solution designed for ultra-high bandwidth requirements in next-generation AI data centers and High-Performance Computing (HPC) networks. Utilizing advanced 850nm VCSEL technology,this module delivers a stable 800Gbps data rate over short distances, ensuring low latency
and high energy efficiency for mission-critical interconnections.

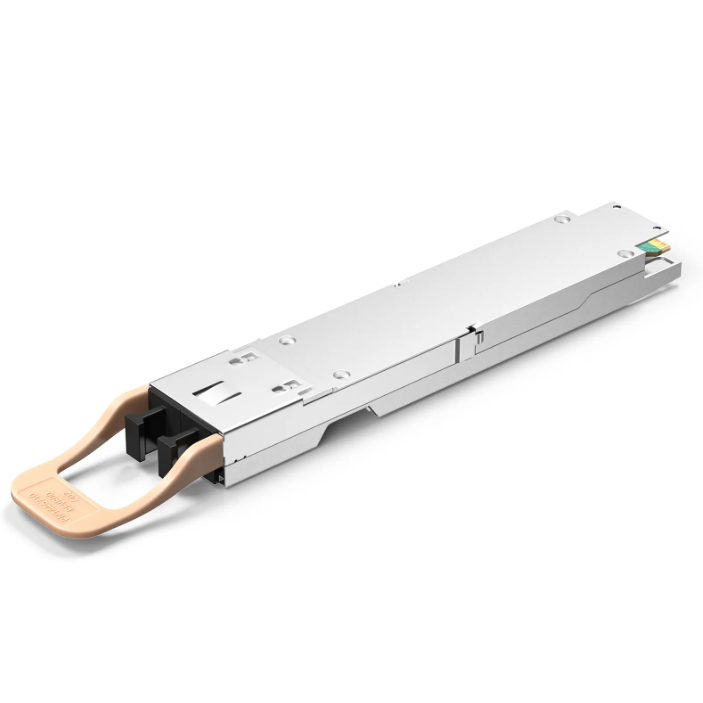

Figure 1 shows the front panel of 800G OSFP VR8 MPO.
Technical Specifications
- Data Rate: 800Gbps (8x112G PAM4)
- Wavelength: 850nm VCSEL
- Connector Type: MPO-12/APC or MPO-16
- Transmission Distance: Up to 30m (OM3) / 50m (OM4) MMF
- Form Factor: OSFP (Octal Small Form-factor Pluggable)
- Power Consumption: < 14W
- Compliance: IEEE 802.3ck, OSFP MSA, RoHS compliant
Product Comparison: VR8 vs. SR8 vs. DR8
| Feature |
800G OSFP VR8 |
800G OSFP SR8 |
800G OSFP DR8 |
| Fiber Type |
Multimode (MMF) |
Multimode (MMF) |
Singlemode (SMF) |
| Max Distance |
50m (OM4) |
100m (OM4) |
500m |
| Laser Source |
850nm VCSEL |
850nm VCSEL |
1310nm EML/SiPh |
| Primary Use |
Intra-rack AI clusters |
Inter-rack connection |
Campus/Spine-Leaf |
Frequently Asked Questions (FAQ)
Q: What is the difference between 800G VR8 and SR8?
A: VR8 (Very Short Reach) is optimized for ultra-short distances up to 50m, offering a more cost-effective solution for intra-rack connections compared to the 100m range of the SR8 (Short Reach).
Q: Does this 800G module support breakout applications?
A: Yes, the 800G OSFP VR8 supports breakout configurations, allowing it to interface with 2x400G or 8x100G legacy equipment via MPO breakout cables.
Q: Is it compatible with Huawei and Cisco switches?
A: Absolutely. Our modules undergo rigorous compatibility testing in brand-name switches (Huawei, Cisco, Arista) to ensure seamless plug-and-play performance with zero packet loss.
After-Sales & Quality Assurance
We provide a 1-year warranty and lifetime technical support for all our 800G optical transceivers. Each unit is individually tested for signal integrity and compatibility before shipping, ensuring industrial-grade reliability for your data center infrastructure.
