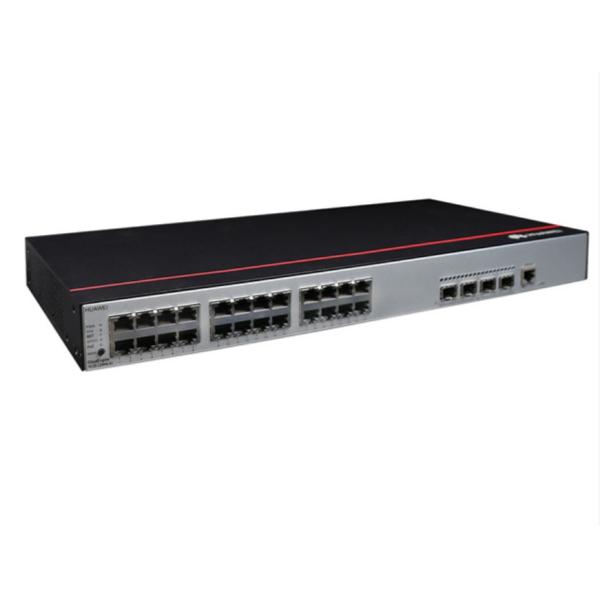

Huawei CloudEngine S5735-L24T4S-A1 Network Switch with 24x10/100/1000BASE-T Ports 4xGE SFP Ports and AC Power

Brand Name : Huawei

Model Number : S5735-L24T4S-A1

Certification : CE

Place of Origin : China

Model : S5735-L24T4S-A1

Memory : 512 MB

Flash Memory : 512 MB

Console port : RJ45

Power supply mode : AC built-in

Maximum input current [A : 2 A

Condition : New Factory Sealed

Warranty : 1 year

Payment : T/T, Western Union, Paypal

Shipment : DHL, Fedex, UPS

Contact Now

CloudEngine S5735-L24T4S-A1 Switch
24×10/100/1000BASE-T ports, 4×GE SFP ports, AC power
Product Overview
Built on next-generation, high-performance hardware and powered by Huawei's Versatile Routing Platform (VRP), CloudEngine S5735-L switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols—providing higher performance and more powerful service processing capabilities for networks.
Huawei CloudEngine S5735-L24T4S-A1 Network Switch with 24x10/100/1000BASE-T Ports 4xGE SFP Ports and AC Power Huawei CloudEngine S5735-L24T4S-A1 Network Switch with 24x10/100/1000BASE-T Ports 4xGE SFP Ports and AC Power
Quick Specifications
Specification Value
Product Model S5735-L24T4S-A1
Memory 512 MB
Flash Memory 512 MB
Typical Power Consumption 32.7 W
Typical Heat Dissipation 111.58 BTU/hour
Supported Transceivers
Model Description
OMXD30000 Huawei Optical Transceiver OMXD30000, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC)
SFP-GE-LX-SM1310 Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC)
OMXD30009 Transceiver, QSFP+, 1310nm, 41.25Gbps, -7dBm, 2.3dBm, -11.5dBm, LC, SMF, 10
ESFP-GE-SX-MM850 Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.5km, LC)
Product Comparison
Product Model Forwarding Performance Switching Capacity Fixed Ports PoE+ Support
S5735S-L12T4S-A / S5735S-L12P4S-A 24 Mpps 32 Gbit/s / 336 Gbit/s 12×10/100/1000Base-T ports, 4×GE SFP ports S5735S-L12P4S-A: Supported
Others: Not supported
S5735S-L24T4S-A / S5735S-L24P4S-A 42 Mpps 56 Gbit/s / 336 Gbit/s 24×10/100/1000Base-T ports, 4×GE SFP ports S5735S-L24P4S-A: Supported
Others: Not supported
S5735S-L24T4X-A / S5735S-L24P4X-A 96 Mpps 128 Gbit/s / 336 Gbit/s 24×10/100/1000Base-T ports, 4×10 GE SFP+ ports S5735S-L24P4X-A: Supported
Others: Not supported
S5735S-L48T4S-A 78 Mpps 104 Gbit/s / 432 Gbit/s 48×10/100/1000BASE-T ports, 4×GE SFP ports Not supported
S5735S-L48T4X-A / S5735S-L48P4X-A 132 Mpps 176 Gbit/s / 432 Gbit/s 48×10/100/1000BASE-T ports, 4×10 GE SFP+ ports S5735S-L48P4X-A: Supported
Others: Not supported
S5735S-L32ST4X-A 108 Mpps 144 Gbit/s / 432 Gbit/s 24×GE SFP ports, 8×10/100/1000BASE-T ports, 4×10 GE SFP+ ports Not supported
Detailed Specifications
Specification Details
Dimensions without packaging (H × W × D) Basic: 43.6 mm × 442.0 mm × 220.0 mm (1.72 in. × 17.4 in. × 8.7 in.)
Maximum: 43.6 mm × 442.0 mm × 227.0 mm (1.72 in. × 17.4 in. × 8.94 in.)
Dimensions with packaging (H × W × D) 90.0 mm × 550.0 mm × 360.0 mm (3.54 in. × 21.65 in. × 14.17 in.)
Chassis Height 1 U
Maximum Power Consumption 47.6 W
Maximum Heat Dissipation 162.42 BTU/hour
MTBF 66.16 years
MTTR 2 hours
Availability >0.99999
Noise at Normal Temperature 39 dB(A) (acoustic power)
27.2 dB(A) (acoustic pressure)
Operating Temperature -5°C to +50°C (23°F to 122°F) - Standard modules
-5°C to +55°C (23°F to 131°F) - Industrial modules (≤10km)
Temperature reduces by 1°C per 220m altitude increase above 1800m
Storage Temperature -40°C to +70°C (-40°F to +158°F)
Operating Relative Humidity 5% to 95%, noncondensing
Operating Altitude 0-5000 m (0-16404 ft.)
Power Supply AC built-in, 100-240V AC, 50/60 Hz
Input Voltage Range 90-290V AC, 45-65 Hz
Maximum Input Current 2 A
Console Port RJ45
Heat Dissipation Intelligent fan speed adjustment, air intake from left and front, exhaustion from right
Certification EMC, Safety, Manufacturing
Huawei CloudEngine S5735-L24T4S-A1 Network Switch with 24x10/100/1000BASE-T Ports 4xGE SFP Ports and AC Power
