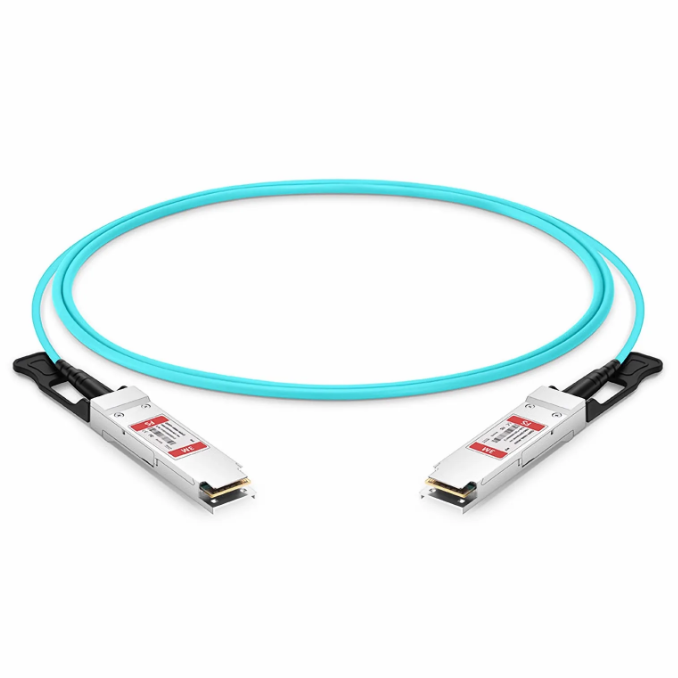

Cisco QSFP-100G-AOC3M 100G QSFP28 Active Optical Cable 3M for Data Center

Name: Cisco QSFP100GAOC3M 100G QSFP28 Active Optical Cable 3M for Data Center
Brand: HUAWEI
Price: 1 USD

Quality Cisco QSFP-100G-AOC3M 100G QSFP28 Active Optical Cable 3M for Data Center for sale

Brand Name : HUAWEI

Model Number : QSFP-100G-AOC3M

Certification : CE

Place of Origin : China

MOQ : 1

Payment Terms : T/T

Delivery Time : 2-3 days

Product Name : SFP Optical Transceiver

Part Number : QSFP-100G-AOC3M

Shipment : DHL

Condition : New

Lead Time : 2-3 days

Warranty : 1 year

Keywords : QSFP-100G-AOC3M

Contact Now

QSFP-100G-AOC3M Overview

The Cisco QSFP-100G-AOC3M is a high-performance 100G QSFP28 Active Optical Cable designed for short-range, high-speed data center connectivity. It delivers 100 Gbps throughput over a 3-meter link using four 25.78 Gbps lanes, ideal for intra-rack and inter-rack connections between switches, servers, and storage devices.

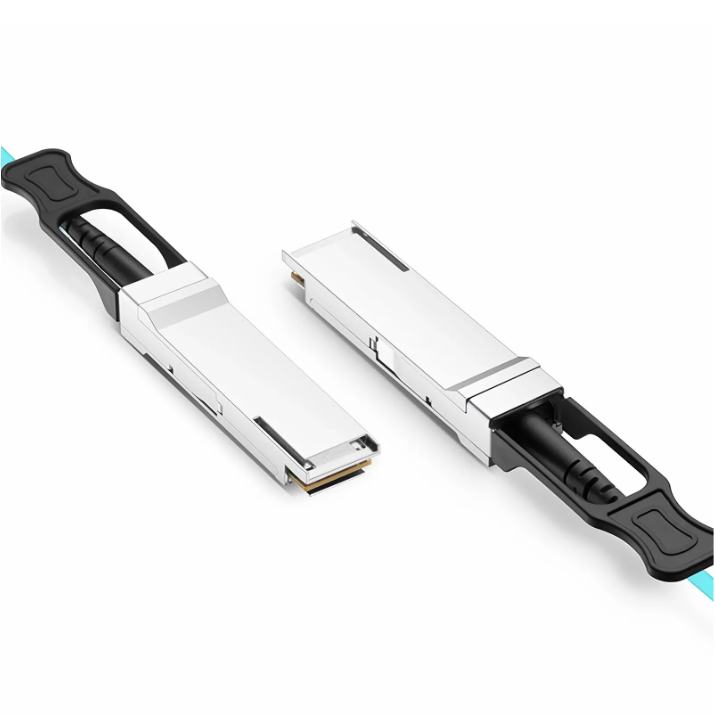

Figure 1 shows the front panel of QSFP-100G-AOC3M .

Cisco QSFP-100G-AOC3M 100G QSFP28 Active Optical Cable 3M for Data Center

Quick Specs.

Table 1 shows the Quick Specs

Item	Specification
Model	QSFP-100G-AOC3M
Data Rate	100 Gbps (4×25.78 Gbps)
Cable Length	3 meters
Connector	QSFP28 to QSFP28
Cable Type	Active Optical Cable (AOC)
Power Consumption	3.5W
Operating Temp	0°C to 70°C

Detailed Specification

Parameter	Details
Product Model	QSFP-100G-AOC3M
Form Factor	QSFP28 MSA compliant, hot-pluggable
Data Rate	100 Gbps (4 lanes × 25.78125 Gbps)
Cable Length	3 meters
Cable Type	Active Optical Cable (AOC)
Fiber Type	Multimode fiber (OM3/OM4)
Cable Diameter	3.5 mm
Bend Radius	30 mm
Power Supply	3.3 VDC (3.135–3.465 V)
Power Consumption	3.5 W typical
Operating Temperature	0°C to 70°C
Storage Temperature	-40°C to 85°C
Relative Humidity	15% to 85% (non-condensing)
Compliance	IEEE 802.3bj, QSFP28 MSA, RoHS
Applications	Data center interconnection, switch-to-switch, server-to-switch
